DIN 2353 fitting types
Plan the connection at every straight run, turn, branch and equipment port. Detailed dimensions and part numbers are available in Fluidline’s dedicated technical resource.
Sizes, materials and connection options
Start with the tube outside diameter and fitting series. Then confirm the connection geometry and operating duty.
| Selection | Reference |
|---|---|
| Connection family | Metric 24° cone cutting-ring tube connections, referenced by DIN 2353 and ISO 8434-1. |
| Material selection | Specify the required stainless steel grade. The fitting reference lists 316L and 316Ti enquiry options; confirm availability for the chosen item. |
| Series and reference sizes | LL: 4–12 mm; L: 6–42 mm; S: 6–38 mm tube outside diameter. These are catalogue selection ranges, not confirmation that every size and configuration is stocked. |
| Equipment connections | BSPP, BSPT, metric, NPT and UN/UNF O-ring arrangements appear in the reference. Confirm the required thread, seat and seal. |
| Operating limits | Pressure and temperature depend on the supplied fitting, tube, seals and configuration. Obtain the applicable limits for the complete assembly. |
Specify the assembly, from port to support
A marked drawing or component list helps identify the complete tube run before an order is placed. Include changes of direction, branches, threaded transitions and isolation points.
- Define the connections. List tube diameter, wall thickness, fitting series and both end connections.
- Describe the service. Include fluid, pressure and pressure peaks, temperature, vibration and external exposure.
- Confirm the supply. Add quantities, delivery location, timing and any drawing or material-document requirements.
For replacement work, include photographs and existing markings. Matching the thread alone is not enough to identify the connection.
Catalogues and datasheets
Download the relevant reference and include the selected configuration or part number with your enquiry.

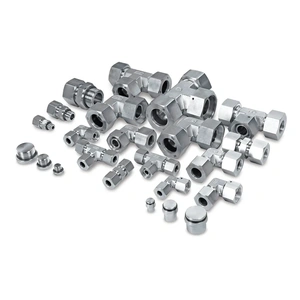

- F-LINE DIN 2353 hydraulic fittings catalogue
Illustrated fitting families, connection selection and dimensional reference. 84 pages. - DIN 2353 and ISO 8434-1 technical datasheet
A shorter reference for specifying a hydraulic fitting enquiry. 5 pages - Fluidline hydraulic ball valve catalogue

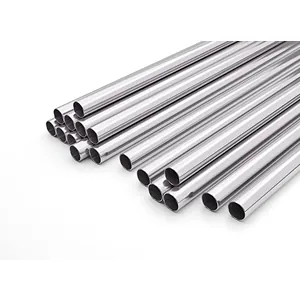

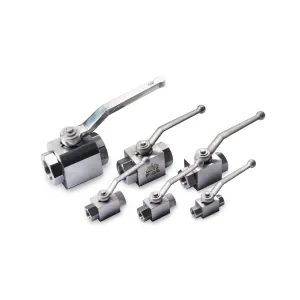

Fluidline valve codes, construction information and connection-specific reference tables. 7 pages - Fluidline seamless tubing datasheet
Existing Fluidline tubing reference; confirm suitability for the selected hydraulic connection. 2 pages - Tube clamps catalogue

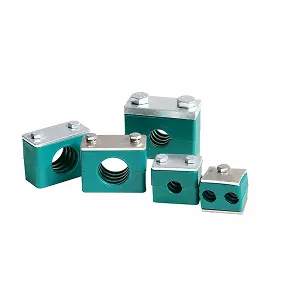

Existing Fluidline tube-support catalogue. 2 pages - 600 Series tube benders

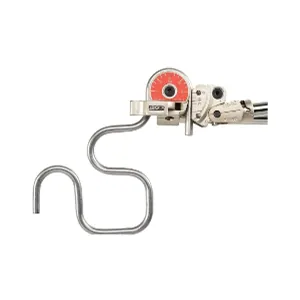

Existing tube-bender catalogue available from Fluidline. 2 pages - Tube cutters catalogue
Existing tube-cutter product literature. 1 page - 600 Series bender instructions
Instructions supplied through the existing Fluidline tools page. 8 pages
From Midrand to your workshop, plant or project
Request stainless steel hydraulic components for equipment assembly, plant modifications and maintenance in mining, mineral processing and industrial applications.
Fluidline serves customers in South Africa and African markets including Zambia, the Democratic Republic of Congo, Namibia, Botswana, Zimbabwe and Mozambique. Send your delivery town and country with the enquiry so fittings and transport can be considered together.
Whether the destination is Johannesburg, Kitwe, Solwezi, Kalumbila, Lubumbashi, Kolwezi or Tete, confirm current availability, freight and the required documentation with your quotation.
More about regional supply enquiries
Hydraulic tube runs, connections and supports in an industrial installation.
Hydraulic supply for projects and maintenance
For a new hydraulic assembly, plant modification or maintenance replacement, a consolidated enquiry helps identify the fittings and associated components before an order is placed. Mining operations, processing plants and industrial workshops can include tubing, valves and supports alongside the connection requirements.
Tell Fluidline the delivery town and country, required quantities and project timing. Request current availability, delivery arrangements and any required drawings or material documents with the quotation. Supply to African destinations is assessed against the actual order and delivery requirements.
