Air header manifolds & Instrument air distribution headers
Engineered stainless steel instrument air distribution solutions for critical industrial applications
An air header manifold, also referred to as an instrument air header or air distribution manifold, is used to distribute compressed air or inert gas from a single supply point to multiple instruments, pneumatic devices, actuator systems, or pneumatic control applications within an industrial plant.
Although often viewed as a simple fabricated assembly, properly engineered air header manifolds play a critical role in maintaining pneumatic system reliability, leak integrity, safety, pressure containment and long-term operational performance.
Typical air header manifold configurations

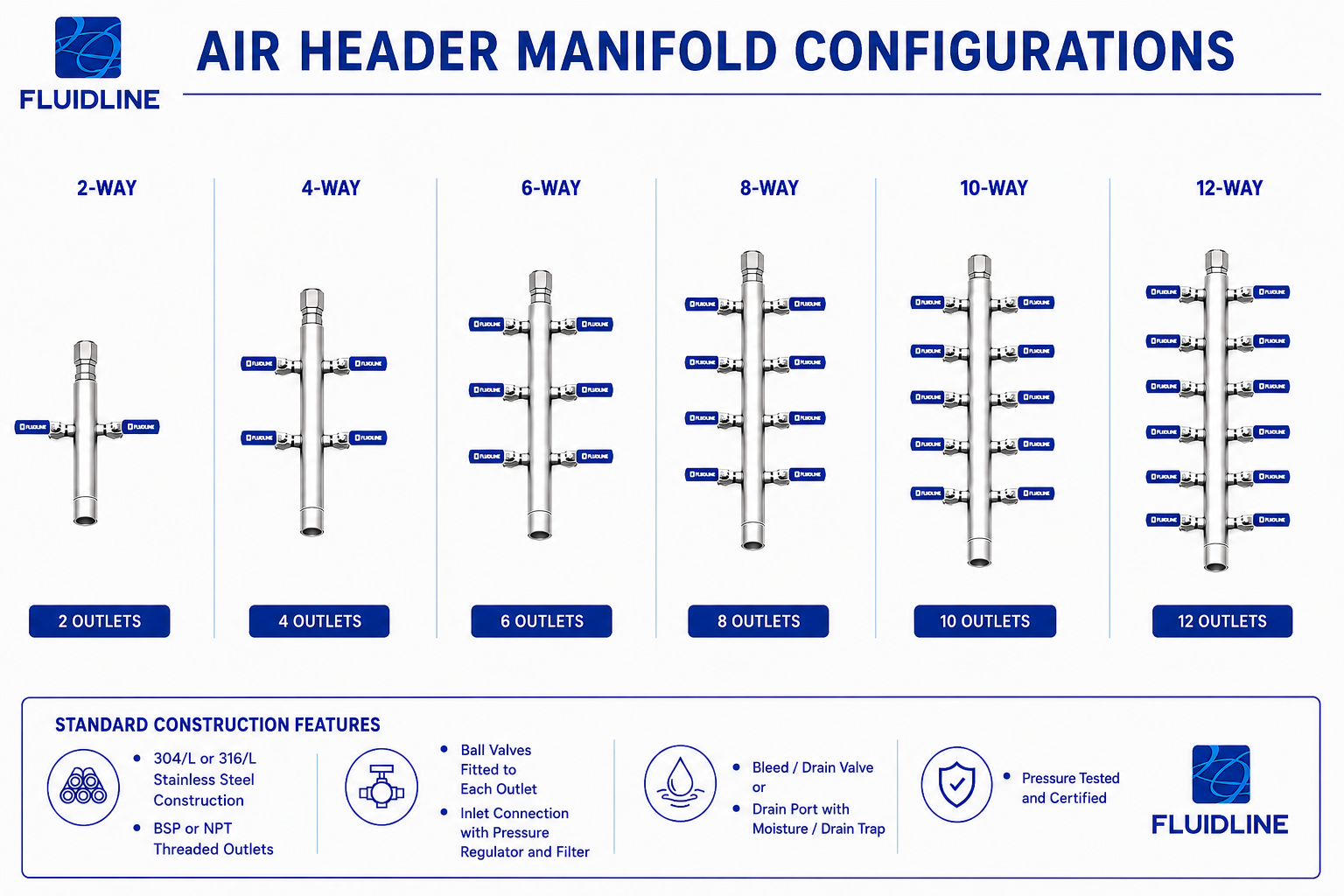

Air header manifolds are available in a wide range of standard and custom configurations depending on the application requirements.
Typical configurations include:
2-Way / 4-Way / 6-Way / 8-Way / 10 Way / 12-WAY / CUSTOM DESIGNS
Depending on the operating environment and project specification, common design and configuration options include:
- 304/L or 316/L stainless steel construction
- BSP or NPT threaded outlets
- Ball valves or needle valves fitted to each individual outlet
- Mounting brackets for secure installation
- Drain ports for safe depressurisation and maintenance
- Pressure testing and certification to support quality assurance and system integrity
Why proper engineering matters
In many industrial applications, the reliability of an instrumentation system depends heavily on the quality and integrity of the supporting pneumatic distribution system.
Incorrect threading, poor fabrication practices, inadequate welding procedures, insufficient testing, or missing material traceability can result in:
- Pneumatic leaks
- Instrument failure
- Costly downtime
- Delayed commissioning
- Failed inspections or audits
- Increased maintenance costs
For this reason, engineers throughout industrial plants require fully documented and pressure-tested manifold assemblies that comply with strict project quality standards.

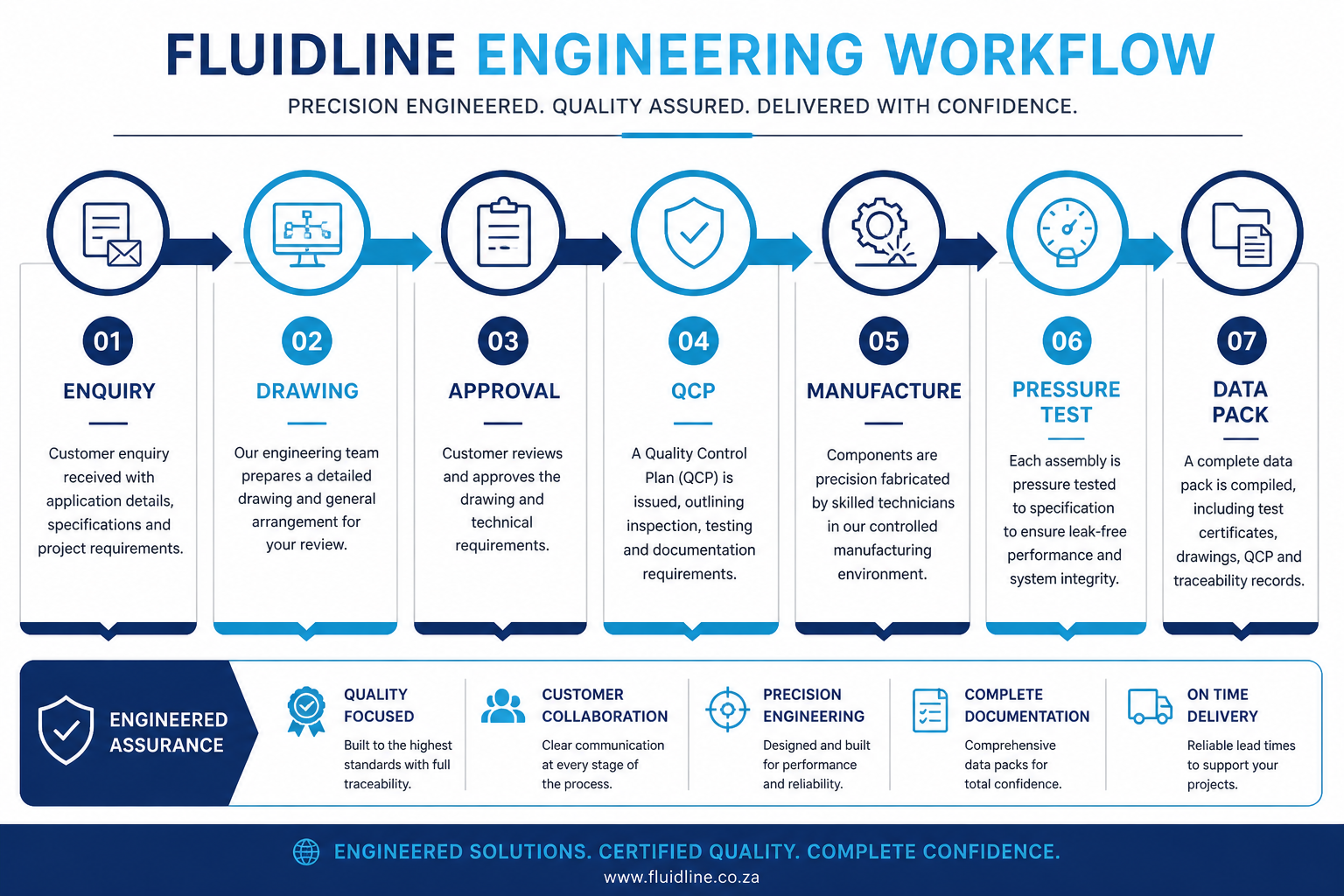

Quality control plans (QCP) & manufacturing traceability
At Fluidline Products, air header manifolds are approached as engineered instrumentation assemblies rather than generic fabricated components.
Where customer drawings are not available, Fluidline assists by generating detailed approval drawings prior to manufacture. This helps ensure dimensional accuracy, correct orientation, and alignment with the customer’s installation requirements before production begins.
Complete instrumentation distribution solutions
Designed for industrial reliability, Fluidline air header manifolds integrate seamlessly with instrumentation tubing systems, valves, regulators, and fittings to provide complete pneumatic distribution solutions for:
- New projects
- Plant upgrades
- Shutdowns
- Maintenance applications
With decades of experience supplying critical instrumentation products throughout South Africa and Sub-Saharan Africa, Fluidline Products continues to support industry with engineered air header manifold solutions focused on:
- quality
- traceability
- pressure integrity
- leak-free performance
- long-term operational reliability
